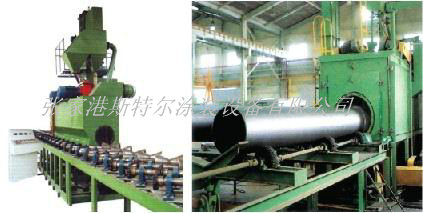

不銹鋼鋼管內外壁拋噴丸快速清理機
◆物品特色 Product features
鍍鋅鐵管表面層拋丸除去機支持于大、中、家庭型鍍鋅鐵管、設備的表面層處里和淬煉、零部件系統自動的高速旋轉、系統自動的還有當地的民俗，零部件的運行的極限速度可不同零部件的標準使用按時修正，可規劃成單管、雙管、3管、4管、變種后可處理大中型管材、液化氣儲罐，化工環保貯運罐企業公司維修等。
The outer steel wall of shot cleaning machine is used in large, medium and small steel tube, the cylinder's surface treatment and strengthening, workpiece rotating, automatic walk, the operation speed according to the requirements can be adjusted, can design the single pipe, double tube, 3, 4 pipe, tube variation can be clean up after large-scale pipe, oil tank, chemical storage tank railway vehicles and so on.
◆核心技術應用性能參數 Main technical parameters
|
快速清理型鋼尺寸圖 Clean steel pipe size |
Φ300×5000mm |
拋丸器用戶 The number of shot peening machie |
2臺 |
|
輥道加載運行速度 Roller speed |
1-5m/min |
拋丸器耗油率 Shot peening machie power |
11kw×2 |
|
彈丸直徑 Projectile diameter |
Φ0.8-Φ1.2mm |
拋丸量 The number of shot peening |
250kg/min×2 |
|
頭次彈丸放進量 The first projectile into amount |
800kg |
槳葉直徑不低于 Impellerdiameter |
Φ250mm |
|
進(出)料輥道總長 Length of material into(out) the roller |
5000mm |
水輪轉動速度 Impeller speed |
2930r/min |
|
輥距 Roller dimension |
400mm |
拋射速率 Aerosol propellant speed |
60-70m/s |
|
承受承重 Load weight |
30kg/m |
改善機工作效率 Hoist machine power |
3kw |
|
擺線減速運動機輸出功率 Cycloidal reducer power |
2.2kw |
提拔量 Ascension of |
30/h |
|
濾出布袋條數 The number of filter bag |
36條 |
溶合量 Separation of |
30t/h |
|
過濾裝置布袋尺寸規格 Specification of filter bag |
Φ120×5000mm |
側向雷韻電機功率Longitudinal spiral power |
3kw |
|
加工新風量 Processing air volume |
9800m3/h |
推送量 Throughput |
30t/h |
|
除塵設備排風機電功率 Dust electromotor power |
5.5kw |
總工率 Total power |
37kw作用 |
|
振打高壓電機工作功率 Vibration motor power |
0.75kw |
裝備外表的尺寸 Shape dimension |
15000×4600×5000mm |
