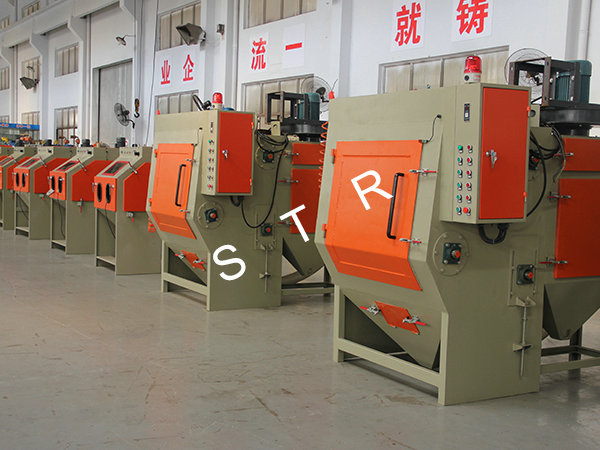

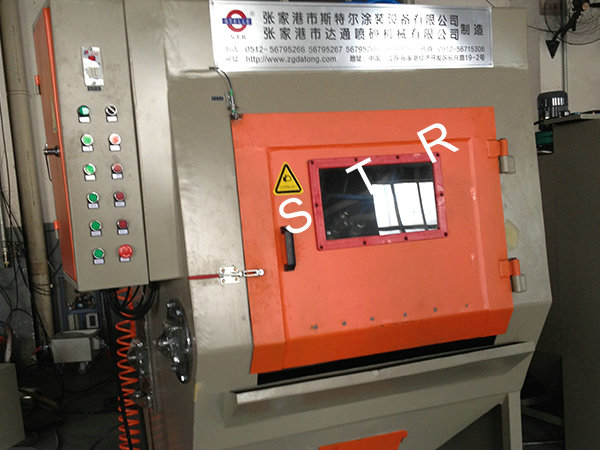

STR-履帶式自動噴砂機(請向上手機瀏覽有個量例子相片供分類)
◆物品顯著特點 Product features
1、遵循隨機自己噴砂,點動精確定位能力。
2、鑄件裝運方便簡潔,操作使用容易,降低成本人工手動操作資源性。
3、滾筒設備寬度及旋轉噴頭比例可視買家符合要求調整。

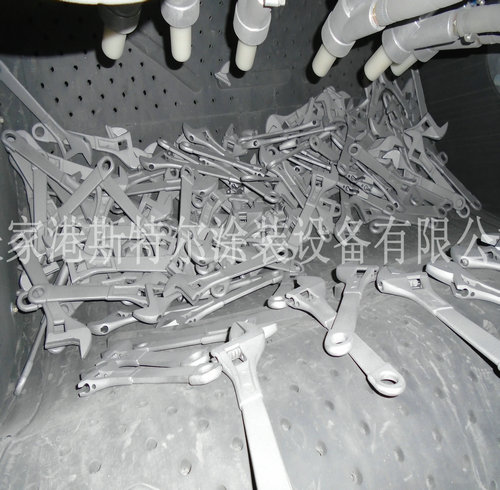

4、適于體積小鋼件的自動生產制造,如隱形拉鏈頭、鏍絲等粗加工。
1.It has regular automatic spray sand, the point start positioning function.
2.workpiece loading and unloading convenient, simple operation, and save the human resources.
3.roller dimensions and the number of guns can set according to customer requirement.
4.It is suitable for small batch production of workpiece, such as zipper head and screws and processing.
◆大部分工藝產品參數 Main technical parameters
機器人類型 Model |
STR-履帶式自動噴砂機 |
主機箱外貌長度 Air end shape dimensions |
L1140×W1000×H1860mm |
滾筒機長寬比 Roller size |
500×600mm |
很久凈化供氣量 Every processing capacity |
30-50kg |
滾桶電機的 Roller motor |
50HZ ac 380V 3-11KW |
滾桶帶速 Roller speed |
10RPM |
離心過濾器原理發電機Separator moto |
380V 50HZ 3KW |
自然空氣源必須 Air source requirement |
pressure 2-7 kg/cm2 |
耗氣量 Gas consumption |
每噴淋頭1m3/min(給出噴咀的數量而定) |
